Regenerative AC/DC Electronic Load
RPS-5000L
Model L is designed for high-power systems with bidirectional energy recovery and versatile load configurations up to 225kVA.
To download the PowerVUE software, please contact our sales team: sales@infinipowertech.com
Main specifications and applications
RPS-5000L is a full four-quadrant, regenerative AC/DC electronic load, specially designed to meet the testing of high-power power systems. It is suitable for electric vehicle charging piles, energy storage systems, renewable energy inverters, industrial generators, etc. Intermittent system UPS and other fields. Through bidirectional recovery technology, RPS-5000L can feed load energy back to the grid, effectively reducing operating costs. Supports a variety of load configurations, including constant current (CC), constant power (CP), constant resistance (CR), circuit emulation (CZ), phase lead/lag, etc., which can be used for steady-state and transient test requirements, and can be transparently The power bank supports capacities from 30kVA – 225kVA.
Specifications:
- Output Power: 30 kVA, 45 kVA, parallel output up to 225 kVA
- Rated Current (45 kVA): Single-phase 300A, Three-phase: 100A / phase
- Configuration: AC/DC electronic load, supports single-phase and three-phase configuration
Voltage Range: 350 Vac (L-N) / 606 Vac (L-L) or ±495 Vdc - Frequency Range: 30Hz – 150Hz
- Crest Factor Range: 1.414 – 3.000
- Power Factor Range: 0.100 – 1.000 (leading/lagging)
- Provides 100% rated apparent power regeneration capability, with up to 90% high efficiency feedback to the grid after conversion
- Basic Modes: Constant Current (CC), Constant Power (CP), Constant Apparent Power (CS), Constant Resistance (CR), Circuit Simulation (CZ)
- Inductive/Capacitive Load Simulation Functions (CCPH, CPPH, CSPH)
- Leading/Lagging Current Load Mode
- Power Flow Mode
- Positive/Negative Half-cycle Load Function
- Configurable Start/End Current Loading Angle and Maximum Load Current Limit
- Stand-By Mode Function
- Remote Interfaces: USB, LAN (standard), GPIB, CAN (optional)
- Global Universal Input Voltage Specification
- Optional Parallel Expansion for Higher Output Power (Three-phase mode)
Test application fields include:
EV AC/DC charging stations (EVSE), bidirectional on-board chargers (BOBC) with V2L, V2H applications, etc.
V2G, V2H, V2X and EV charging cables and related components
Industrial and residential energy storage systems (ESS), power conversion systems (PCS)
Uninterruptible Power Supply (UPS), Power Distribution Units (PDU)
Hybrid PV Inverters
Off-Grid Inverters and UPS-related product testing applications
Advanced Features:
- Higher frequency range: 30Hz – 150Hz
- Complete rectification modes: 5 input waveforms
- Provides 14 sets of circuit simulations (CZ)
- Disturbance Mode: Programmable multi-stage harmonic current components (optional)
- Half-cycle load capability: both positive and negative half-cycle
01.
Energy recovery
The RPS-5000L offers accurate grid simulation and efficient bidirectional energy recovery, replicating real grid conditions. It is widely used in renewable energy testing, including energy storage, and EV charging stations. The system can feed over 90% of absorbed energy back to the grid, reducing energy waste and electricity costs. It also features a built-in protection mechanism that triggers alarms and circuit breaker protection in response to grid abnormalities, ensuring compatibility with grid protection standards.
02.
Supports various AC/DC load simulations
RPS-5000L offers versatile AC/DC load simulations with basic modes like constant current (CC), constant voltage (CV), and constant power (CP). It also supports advanced AC load modes such as rectification, inductive/capacitive load simulation, and half-cycle load functions. Ideal for testing electric vehicle chargers, energy storage systems, inverters, and other power equipment, the RPS-5000L provides flexible solutions to simulate various current, voltage, and power conditions.
Electric vehicle and charging test solutions
Infinipower's grid simulation technology is designed for the testing and verification of electric vehicles and charging infrastructure, and is suitable for Level 2 and Level 3 chargers. The system can accurately simulate voltage, frequency, harmonics and other grid conditions to verify the stability and performance of charging equipment. Through comprehensive testing, including charging speed, efficiency, fault protection and energy feedback functions, we ensure that the charger complies with international standards under various working conditions and enhance product reliability and competitiveness.
03.
Supports three-phase and single-phase load modes
The RPS-5000L offers both three-phase and single-phase operation modes, supporting independent control of three-phase loads and multiple connection options (Δ or Y) to suit various test scenarios. In single-phase mode, it provides flexibility for asymmetric voltage or specific grid designs, making it ideal for testing EV charging stations, UPS, and industrial power supplies.
04
Intuitive and clear user interface
RPS-5000L is equipped with a 7-inch touch screen with knob control, making it easy to operate. The device's LCD touch screen provides intuitive control and real-time data monitoring, allowing testers to quickly set parameters and monitor test status. In addition, it supports a variety of connection interfaces, including USB, LAN and optional GPIB or CAN bus, making remote control and automated testing more convenient.
Data center power testing solutions
Our system can accurately simulate the high-load operating environment of the data center and test the stability, efficiency and performance of power equipment under different voltage and frequency conditions. Through comprehensive verification testing, we ensure that the data center's power supply system has long-term stability and reliability under high-intensity work, providing a solid guarantee for the company's data processing and network services.
05.
Advanced load mode

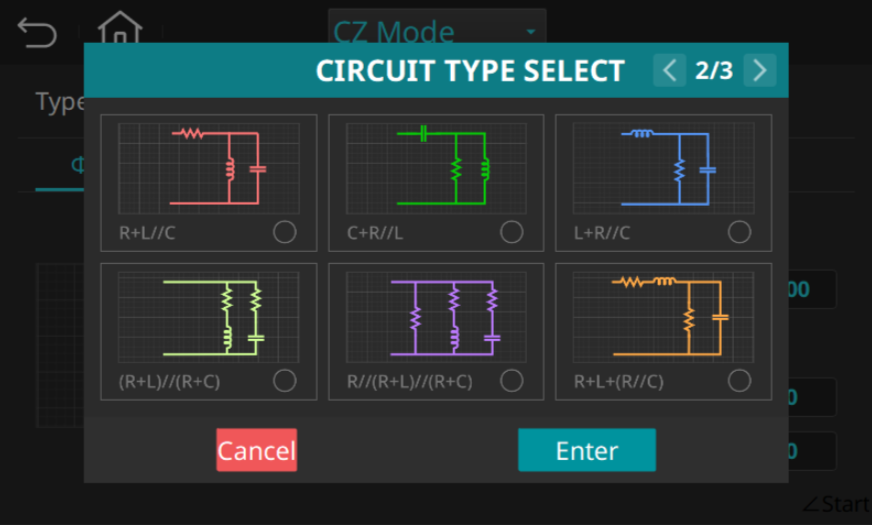

The RPS-5000L offers advanced AC load functions, including 13 circuit simulation modes, inductive/capacitive load simulation, and half-cycle load pulling, enabling it to simulate various grid and load conditions for precise testing of EV charging stations, UPS, and industrial power supplies. For DC load testing, it includes BATT mode for simulating battery discharge, SWD mode for transient response testing, and OCP/OPP functions for over-current and over-power protection. The SWP mode allows dynamic adjustment of switching current and frequency, while the COMB function supports flexible testing configurations with modes like CC, CR, CV, and CP.
06.
PowerVUE remote control software
Infinipower PowerVUE software, compatible with Windows PCs, enables local or remote control via LAN and GPIB interfaces. Its graphical interface supports intelligent test monitoring and management. PowerVUE includes test modes compliant with IEC 61000-4-11, 4-13, 4-14, 4-17, 4-28, and 4-29, ensuring adherence to international standards.
